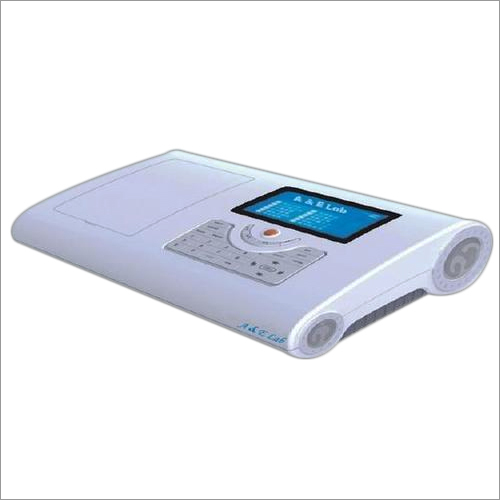

UV Visible Spectrophotometer

UV Visible Spectrophotometer
UV Visible Spectrophotometer
Product Code : 31
Product Description

Features:

The innovative optical layout and state of art mono-chromator with high grade blazed holographic grating ensure accuracy. Its integrated

design assures long term stability and durability.

The precisely aligned detector and quality deuterium and halogen lamps enhance the precision across the UV/vis spectrum starting from

190nm and into the near-infrared 1100nm.

Online software upgrade capability via Internet(for stand-alone models).

Full A4 print-out of graphs and tables of results with popular inexpensive printers such as HP or Epson Deskjet.

Real-time clock for date and time stamping of results.

Large LCD display (320*240 Dots Matrix).



Model

UV-1600  (NEW)

Optical System

Double Beam (1200 Lines/mm Grating)

Wavelength Range

190-1100nm

Band Width

0.5/ 1.0/ 2.0/ 4.0 nm  Optional

Wavelength Accuracy

±0.3nm

Wavelength Repeatability

0.2nm

Photometric Accuracy

±0.3%T

Photometric Repeatability

0.2%T

Photometric Display Range

-0.3-3A,0-200%T,0-9999C

Stability

± 0.001A/h @ 500nm

Baseline Flatness

±0.001A

Noise

±0.001A

Stray Light

0.05%T @220nm, 360nm

Data Output Port

USB

Printer Port

Parallel Port

Display

LCD (320*240 Dots )

Lamps

Deuterium Lamp & Tungsten Halogen Lamp

Detector

Silicon Photodiode

Software

UV PC Software
